ST-730 Series

ST-730 Series is designed for monitoring the middle range turbidity in various applications while the ST-73X Series is for very low turbidity applications. It is more robust and tolerant to fouling, particular matters, and air bubbles comparing to other online turbidity meters designed for relatively clean water applications. The turbidity sensor measures two optical densities and two scattering intensities at two wavelengths. This helps measure a large turbidity range and yet maintain a fine resolution. This design also helps the sensor run self-diagnostics.

Turbidity

Key Benefits:

  • Dual-wavelength: white LED and IR LED 90° scattering to achieve more reliable and accurate reading in a complex flow system.
  • A small footprint compact design.
  • Isolated 4-20mA output. No need for additional transmitter for easy connection to out controllers.
  • Isolated RS-485 output embedded for easy troubleshooting and calibration.

Typical Applications:

  • Industrial water treatment process control, including raw water, cooling water, and wastewater
  • Surface water monitoring
  • Other chemical processes with middle range of turbidity
  • The Ultra-Low Turbidity sensors are designed for drinking water applications

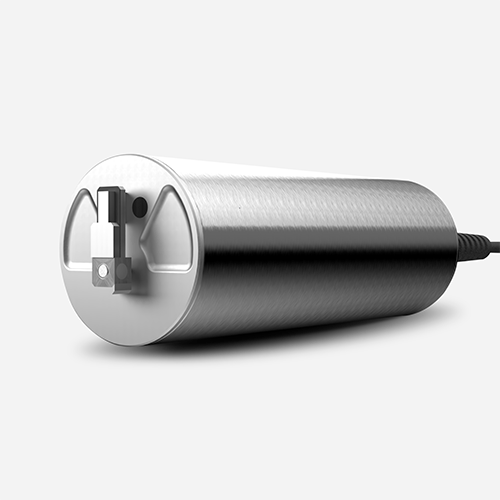

LT-63X Submersible Auto-Brushing Turbidity Sensors

The LT-632 is a submersible, waterproof, self-cleaning sensor that utilizes dual wavelength detection technology to measure turbidity in water or process media. The sensor automatically compensates for disturbances caused by flow fluctuations, climate change, color change or changes in turbidity. The instrument is virtually maintenance-free and the self-cleaning capability of the sensor prevents deviations caused by air bubbles and suspended solids particulate.

Key Benefits:

  • Up to 1 year without calibration
  • Combination 4-20mA isolated signal and RS-485 Modbus (RTU) Output
  • Supports Self-Cleaning of Sensor lens for Dirty Water Applications
  • Optional Calibration with Pyxis Lab® formazine calibration standards or Field Water Samples
  • ¾ inch MNPT Threaded for Fixed Submersion

Typical Applications:

  • Raw water
  • Surface water
  • Storm water
  • Process water
  • Discharged water
